Toro STX26 12 Tooth 3/4" Wide Wheel

CEI OEM Setup

Recommended Series
Quantity of Teeth L,R,S
4 Left, 4 Right,4 Straight
Qty of Pockets
6 CounterSunk, 6 Fine Thread
Recommended Bolts
6005.CEI 2.25" long

GREENTEETH OEM Setup

Recommended Series
Quantity of Teeth
12
Qty of Pockets
8 Angled, 4 Straight, - Reverse
Recommended Bolts(GreenTeeth P/N)
783555-2.25.DOS (LP-214) 2.25 " long

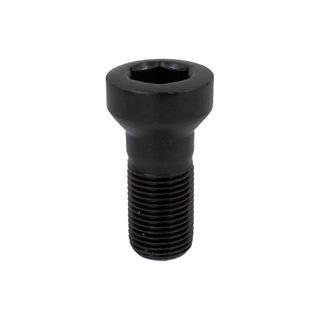

The LoPro® bolts feature a 1/2” Allen drive and are grade 8 heat treated for superior wear resistance. For use with LoPro® pockets, designed specifically to fit the angled shoulder of the LoPro® pocket. These bolts make up for the shortcomings of standard Allen bolts.
SKU: 783555.DOS
Manufacturer Part Number: 783555
Brand: Greenteeth
Availability: In Stock and Ready to Ship
$2.49

Buy More, Save More

Quantity
1+
25+
50+
100+
Price (each)
$2.49
$2.44
$2.39
$2.37
Order Today to Guarantee These Prices
Frequently Bought Together
+
+
Price for All selected:

With the LoPro® design, by reducing the thickness of the pockets and a new design it allowed to increase the steel under the bolts head which in turn created a stronger pocket. A slot at the end of the bolt helps with quick extraction of a broken bolt. With the LoPro® design it has increased the surface area of the pocket which in turn better distributes the torque of the bolt into the wheel.

Recommendations: GREEN-SEIZE™ is a premium anti-seize compound composed of fine copper and graphite powders in a high-heat organic carrier. We recommend lubricating the threads of the pocket bolts to make removal easier.

How to measure bolt length:

  • LoPro® bolts are measured from the top of the head to the bottom of the bolt. They are not measured by shank only.

Specifications:

  • Series: LoPro®

  • Allen Drive Size: 1/2″

  • Torque: 180 ft. lbs. with GREEN-SEIZE™, or 240 ft. lbs. dry.

  • Pocket Compatibility: Designed specifically to fit the angled shoulder of the LoPro® pocket

  • Larger surface area on the angled shoulder for greater holding power

  • Smooth shank that reduces wheel wear

  • Hardness: Grade 8 Heat treated for superior wear resistance.

With the LoPro® design, by reducing the thickness of the pockets and a new design it allowed to increase the steel under the bolts head which in turn created a stronger pocket. A slot at the end of the bolt helps with quick extraction of a broken bolt. With the LoPro® design it has increased the surface area of the pocket which in turn better distributes the torque of the bolt into the wheel.

Recommendations: GREEN-SEIZE™ is a premium anti-seize compound composed of fine copper and graphite powders in a high-heat organic carrier. We recommend lubricating the threads of the pocket bolts to make removal easier.

How to measure bolt length:

  • LoPro® bolts are measured from the top of the head to the bottom of the bolt. They are not measured by shank only.

Specifications:

  • Series: LoPro®

  • Allen Drive Size: 1/2″

  • Torque: 180 ft. lbs. with GREEN-SEIZE™, or 240 ft. lbs. dry.

  • Pocket Compatibility: Designed specifically to fit the angled shoulder of the LoPro® pocket

  • Larger surface area on the angled shoulder for greater holding power

  • Smooth shank that reduces wheel wear

  • Hardness: Grade 8 Heat treated for superior wear resistance.

Product Tags
Customers Also Bought

Greenteeth® Wearsharp™ 700 Series | Stump Grinder Tooth w/Nut

SKU: 783558-700WS.GRE
From $8.54

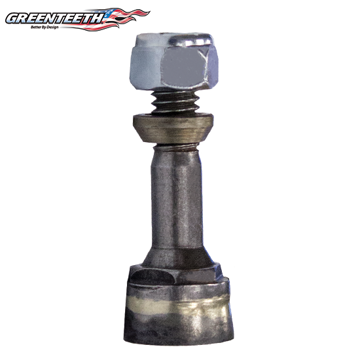

Greenteeth® 500 Series | Standard Dish Green Stump Grinder Tooth w/Nut
